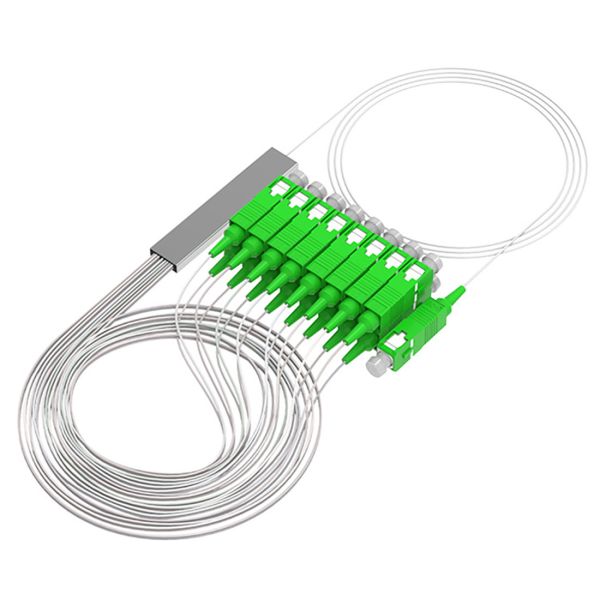

FTTH Fiber Optic Splitter , Passive Optical Splitter 1x2 1x4 1x8

Name: FTTH Fiber Optic Splitter Passive Optical Splitter 1x2 1x4 1x8
Brand: DAMU
Price: 1 USD

Cheap FTTH Fiber Optic Splitter , Passive Optical Splitter 1x2 1x4 1x8 for sale

Brand Name : DAMU

Model Number : DM-PLCSCAPC

Certification : CE ROSH ISO9001

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T

Supply Ability : 500000/month

Delivery Time : 3-7

Packaging Details : NORMAL PACKING

Fiber type : G652D G657A1 G657A2

Application : FTTH FTTB FTTX Network,CATV,Splitter,LAN,FTTH FTTB FTTX PON CATV

Product name : PLC splitter

Operating temperature : -40℃ to 85℃

Type : 1x32,APC,PLC Splitter

Material : fiber,PVC;ABS,connector

Color : White,12 colors are available

Warranty : 3 years

Return loss : ≥50 dB

Splitter : splitter,1x8 splitter as well as 2x4,2x8,1x2 1x32 1x64,available 1x4

Contact Now

Product Description

FTTH Passive Fiber Optical Cable Splitter 1x2 Spliter PLC 1x4 1x8 1x16 1x32 1x64 PLC Splitter

Product Features:
 * Good uniformity and low insertion loss
 * Low Polarization Dependent Loss
 * Excellent Environmental Stability
 * Excellent Mechanical
 * Stability Telcordia GR-1221 and GR-1209

 Application:
 * Fiber to The Home (FTTH)
 * Passive optical networks (PON)
 * Local Area Networks (LAN)
 * Cable Television (CATV)
 * Test Equipment

Feature:

Good high temperature low temperature performance

Convenient engineering applications

Fine polarization

Wide scope wavelength

Tight and fine structure
Excellent parameters on IL & RL

High reliability and directivity

Non-sensitive wavelength

Specification:

Table 1 – 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

Notes:

Specified without connectors.
Add an additional 0.15dB loss per connector

FTTH Fiber Optic Splitter , Passive Optical Splitter 1x2 1x4 1x8

ABOUT DAMU

Shenzhen Damu Technology Co., Ltd. was established in 2019 with a registered capital of 5 million yuan. It is located in Shenzhen City,Guangdong Province, close to Guangzhou Port and Shenzhen Port. With convenient transportation, Damu is a manufacturing and processing enterprise. The company has 1 fiber optic equipment production line, 6 fiber optic patch cord production lines, and 3 PLC splitter production lines. It has 12 years of fiber optic equipment experience and a complete production and sales system. Damu mainly produces indoor fiber optic cables, outdoor fiber optic cables, optical fiber patch cord, PLC splitter, optical fiber polishing machine, polishing fixture, etc. It strictly controls every production process and provides high-precision and high-specification products to meet customer needs. Damu provides OEM, ODM services, products meet the customized processing needs of China mainland and foreign customers. damu serves customers with exquisite craftsmanship,excellent quality, and professional pre-sales and after-sales. 24 hours online answers, to provide you with professional services.Damu is willing to be the cornerstone of your career. Products are mainly sold to Colombia, Mexico, Ukraine, Canada, Britain, France, Myanmar, Vietnam and other countries and regions; The company has a detailed after-sales service system, so you have no worries about purchasing. Welcome to visit Damu
